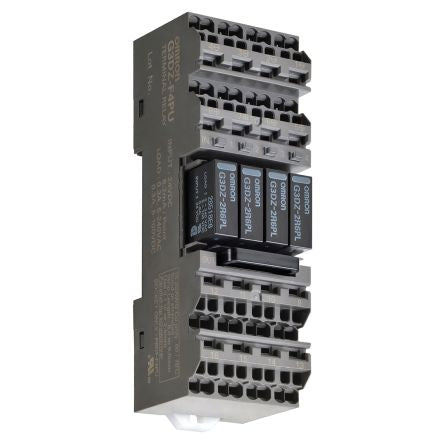

Solid-state relay PCB terminal 4pin SPST [G3DZ-F4PU DC24]; 187-2481
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Minimum Input Voltage | 19.2V |
| Maximum Input Voltage | 28.8V dc |
| Contact Configuration | SPST |
| Mounting Type | DIN Rail |
| Load Current Rating | 100 μA → 0.3 A |
| Load Voltage Rating | 3 → 125 V dc, 3 → 264 V ac |
| Terminal Type | PCB Pin |
| Length | 31mm |
| Depth | 35mm |
| Height | 100mm |
| Dimensions | 31 x 35 x 100mm |
| Input Current | 8.2mA |
| Number of Poles | 4 |
| Relay Switching Classification | Solid State Relay |
| Special Features | Diode for Coil Surge Absorption, Double Wire Method Enables Branch Wiring, Each Relay has Independent Coils and Contacts for PLC Output Compatible, IP20 Protection Code for Push-In Plus models, LED Operation Indicator, Push-In Plus Terminal Enables Work Reduction and Requires no Retightening, Short Bars, TUV Certification for Push-In Plus Terminal, UL and CSA Certification for Standard Models, VDE Certification for Screws Terminal, 5 A Rating by Optimal Designs for Wide Variety of Applications |
| Maximum Operating Temperature | +55°C |
| Input Voltage Range | 19.2 → 28.8V dc |
| Operating Temperature Range | -25 → +55°C |
| Control Resistance | 2.4 (Output)Ω |
| Minimum Operating Temperature | -25°C |
