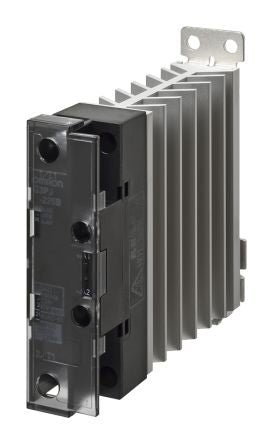

Omron 25 A SP Solid State Relay, Zero Crossing, DIN Rail, Triac, 528 V ac Maximum Load [G3PJ-525B DC12-24]; 111-3037
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 25 A |
| Series | G3PJ |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 75 V ac |
| Maximum Load Voltage | 528 V ac |
| Minimum Control Voltage | 12V dc |
| Maximum Control Voltage | 24V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SP |
| Terminal Type | Screw |
| Output Device | Triac |
| Maximum Turn On Time | 1/2 cycle + 1 ms |
| Dimensions | 22.5 x 100 x 100mm |
| Number of Poles | 1 |
| Maximum Operating Temperature | +80°C |
| Load Voltage Range | 75 → 528V ac |
| Standards Met | CE, CULus, TUV Certification |
| Relay Type | Single Phase |
| Depth | 100mm |
| Control Voltage Range | 12 → 24 V dc |
| Operating Temperature Range | -30 → +80°C |
| Special Features | Single-Phase SSR, Slim Design |
| Off State Leakage Current | 20 mA |
| Height | 100mm |
| Length | 22.5mm |
