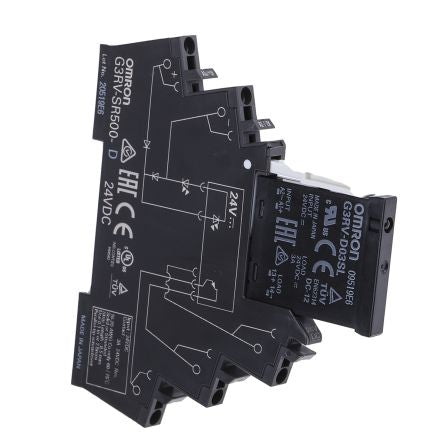

Omron 3 A SPDT Solid State Relay, DC, DIN Rail, MOSFET, 26.4 V dc Maximum Load [G3RV-SR500-D DC24]; 111-3010
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 μA |
| Maximum Load Current | 0.125 |
| Mounting Type | DIN Rail |
| Series | G3RV-SR |
| Minimum Load Voltage | 3 V dc |
| Maximum Load Voltage | 26.4 V dc |
| Maximum Control Voltage | 24 V dc |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Push In |
| Output Device | MOSFET |
| Maximum Turn On Time | 6 ms |
| Dimensions | 6.2 x 78 x 90mm |
| Control Voltage Range | Maximum of 24 V dc |
| Operating Temperature Range | -30 → +55°C |
| Load Voltage Range | 3 → 26.4V dc |
| Off State Leakage Current | 10 μA |
| Length | 6.2mm |
| Height | 90mm |
| Special Features | High-Speed Opening and Closing SSR, Lower Profile than Conventional Products |
| Standards Met | CE, CULus, TUV Certification |
| Relay Type | Solid State Relay |
| Number of Poles | 1 |
| Depth | 78mm |
