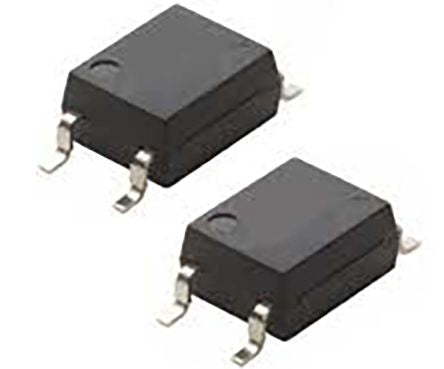

Omron 1400 mA SPNO Solid State Relay, Surface Mount, 60 V Maximum Load [G3VM61VRTR]; 183-7504
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 1400 mA |
| Mounting Type | Surface Mount |
| Series | G3VM |
| Maximum Load Voltage | 60 V |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Package Style | SOP |
| Maximum Turn On Time | 3 ms |
| Dimensions | 3.7 x 4.55 x 2mm |
| Operating Temperature Range | -40 → +110°C |
| Off State Leakage Current | 1000 nA |
| Maximum Operating Temperature | +110°C |
| Capacitance | 70pF |
| Height | 2mm |
| Minimum Operating Temperature | -40°C |
| Length | 3.7mm |
| Depth | 4.55mm |
| Number of Poles | 1 |
| Load Voltage Range | Maximum of 60V |
| Special Features | Special SOP4-Pin Package with Dielectric Strength AC 3.75 kV, 60-V Relay: Continuous Load Current of 1.4 A Max |
