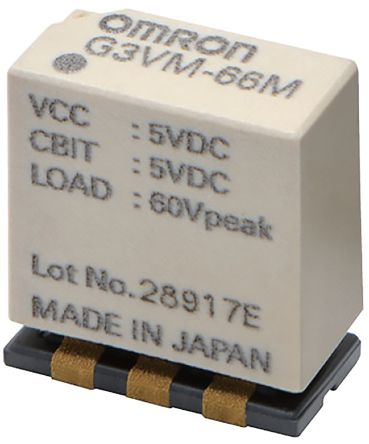

Omron 400 mA SPDT Solid State Relay, Surface Mount, 60 V Maximum Load [G3VM66M]; 183-7503
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 0.4 A |
| Series | G3VM |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 60 V |
| Contact Configuration | SPDT |
| Terminal Type | PCB Pin |
| Dimensions | 10 x 5 x 11mm |
| Operating Temperature Range | -30 → +80°C |
| Length | 10mm |
| Capacitance | 20pF |
| Number of Poles | 1 |
| Off State Leakage Current | 2 nA |
| Special Features | Contact form SPDT, Contribute to Reduce the Mounting Space on the Print Circuit Board by Small Package |
| Minimum Operating Temperature | -30°C |
| Height | 11mm |
| Maximum Operating Temperature | +80°C |
| Depth | 5mm |
| Load Voltage Range | Maximum of 60V |
