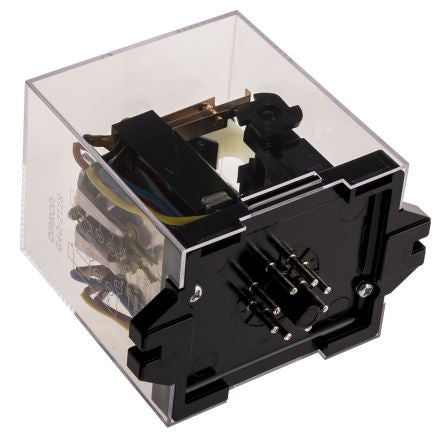

DPDT Plug In Latching Relay 5 A, 24V dc For Use In Power Applications [G4Q-212S, 24VDC]; 184-5949
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.208333333333333 |
| Mounting Type | Plug In |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 250V dc |
| Maximum Switching Power DC | 120 W |
| Length | 92.5mm |
| Depth | 63.5mm |
| Height | 80mm |
| Dimensions | 92.5 x 63.5 x 80mm |
| Terminal Type | Plug In |
| Application | Power |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -10 → +55°C |
| Coil Resistance | 155 Ω |
| Maximum Switching Power AC | 1.1 kVA |
| Life | 500000 (Electrical) cycles, 5000000 (Mechanical) cycles |
| Coil Power | 3.9W |
| Electrical Life | 500000 Cycles |
| Isolation Coil To Contact | 2kV |
| Maximum Operating Temperature | +55°C |
| Number of Poles | 2 |
| Minimum Operating Temperature | -10°C |
