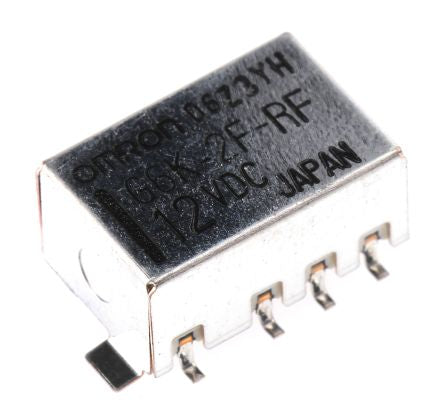

DPDT PCB Mount, HF Relay, 1GHz 12V dc [G6K-2F-RF 12DC]; 492-917
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Coil Frequency | 1GHz |
| Coil Resistance | 1.315 kΩ |
| Contact Resistance | 100 mΩ |
| Insertion Loss | 0.2 dB @ 1 GHz |
| Isolation | 20 dB @ 1 GHz (Between Contacts of the Same Poles), 30 dB @ 1 GHz (Between Contacts of Different Poles) |
| VSWR Voltage Standing Wave Ratio | 1.2 @ 1 GHz |
| Impedance | 50Ω |
| Contact Configuration | DPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Coil Power | 100mW |
| Contact Material | Gold |
| Operating Temperature Range | -40 → +70°C |
| Dimensions | 10.3 x 6.9 x 5.4mm |
| Maximum Operating Temperature | +70°C |
| Depth | 6.9mm |
| Operating Time Including Bounce | 3ms |
| Length | 10.3mm |
| Life | 100000 (Electrical) cycles, 50000000 (Mechanical) cycles |
| Height | 5.4mm |
| Minimum Operating Temperature | -40°C |
| Switching Voltage | 60 V dc, 125 V ac |
