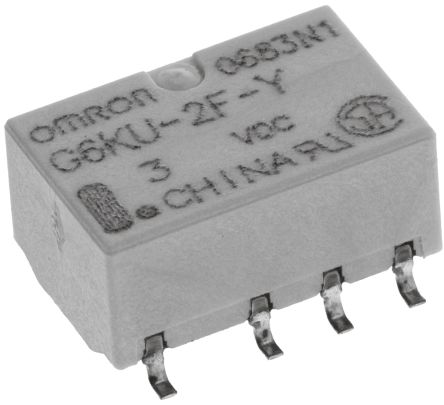

DPDT Surface Mount Latching Relay 1 A, 3V dc For Use In Signal Applications [G6KU2FY3DC]; 683-9740
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 3 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0416666666666667 |
| Mounting Type | Surface Mount |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 60V dc |
| Maximum Switching Power DC | 30 W |
| Length | 10mm |
| Depth | 7.8mm |
| Height | 5.2mm |
| Dimensions | 10 x 5.2 x 7.8mm |
| Terminal Type | Surface Mount |
| Application | Signal |
| Coil Power | 100mW |
| Isolation Coil To Contact | 1.5kV ac |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Features | 3.2mm Pitch |
| Operating Temperature Range | -40 → +70°C |
| Coil Resistance | 91 Ω |
| Maximum Switching Power AC | 37.5 VA |
| Life | 10000000 (Electrical) cycles, 50000000 (Mechanical) cycles |
