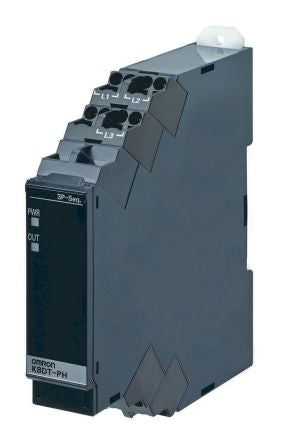

Omron Phase Monitoring Relay With SPST Contacts, 3 Phase, 200 → 480 V ac [K8DT-PH1TN]; 111-3136
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 200 → 480 V ac |
| Contact Configuration | SPST |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Loss, Phase Sequence |
| Length | 90mm |
| Series | K8DT-PH |
| Standards Met | CCC, CE Certified, EN 60947-5-1, UL, UL 60947-5-1 |
| Dimensions | 90 x 17.5 x 90 mm |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 90mm |
| Maximum Operating Temperature | +60°C |
