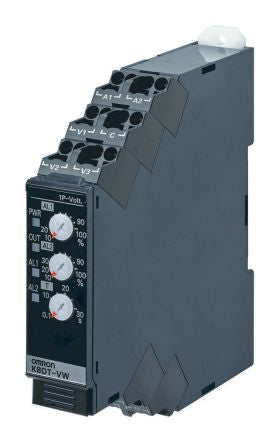

Omron Voltage Monitoring Relay With SPDT Contacts, 1 Phase, 24 V ac/dc [K8DT-VW3CD]; 111-3120
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 1 |
| Voltage Sensing Range | 20 → 200 V, 30 → 300 V, 60 → 600 V |
| Time Delay | 250 ms |
| Height | 90mm |
| Maximum Voltage Sensed | 200 V, 300 V, 600 V |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Series | K8DT-VW |
| Length | 90mm |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -20°C |
| Minimum Voltage Sensed | 20 V, 30 V, 60 V |
| Number of Poles | 1 |
| Dimensions | 90 x 17.5 x 90 mm |
| Standards Met | CCC, CE Certified, EN 60947-5-1, UL, UL 60947-5-1 |
