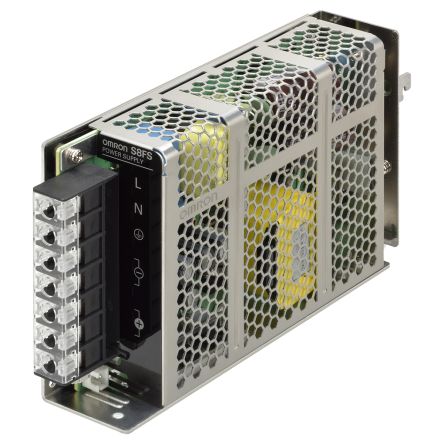

Omron, S8FS-G DIN Rail Power Supply, 24V dc Output Voltage, 1.5A Output Current [S8FS-G03024CD]; 166-6773
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 1.5 A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 36mm |
| Width | 137mm |
| Minimum Temperature | -20°C |
| Depth | 88mm |
| Mounting Type | DIN Rail Mount |
| Series | S8FS-G |
| Standards Met | CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, CULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1 |
| Maximum Temperature | +70°C |
| Load Regulation | 0.01 |
| Output Voltage Adjustment Range | -10 → +15% |
| MTBF | 135000h |
| Efficiency | 0.89 |
| Ripple And Noise | 60mV Pk-Pk |
