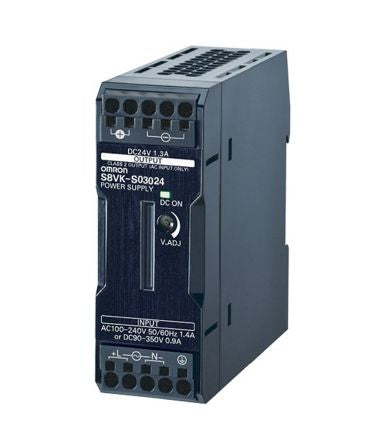

Omron, S8VK-S DIN Rail Power Supply, 24V dc Output Voltage, 1.3A Output Current [S8VK-S03024]; 144-0873
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 1.3 A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 32mm |
| Mounting Type | DIN Rail |
| Load Regulation | 0.015 |
| Special Features | DC Input Supported, High Efficiency, Overload, Power Boost Function, Short Circuit Proof, Side-by-Side Mount, Virtually No Inrush Current, 5-Year Warranty |
| MTBF | 135000h |
| Ripple And Noise | 190mV Pk-Pk |
| Efficiency | 86 % @ 230 V ac, 87 % @ 115 V ac |
| Minimum Temperature | -40°C |
| Depth | 91.2mm |
| Series | S8VK-S |
| Standards Met | ANSI/ISA 12.12.01, CSA C22.2 No. 107.1, CSA C22.2 No. 213, CSA C22.2 No. 60950-1, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3 Class B, EN/IEC 60204-1, EN/IEC 61558-2-16, UL 508, UL 60950-1 Recognised |
| Maximum Temperature | +70°C |
