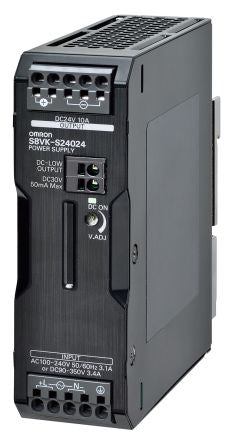

Omron, S8VK-S DIN Rail Power Supply, 24V dc Output Voltage, 10A Output Current [S8VK-S24024]; 125-0865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Output Voltage | 24 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 124mm |
| Width | 38mm |
| Depth | 117.8mm |
| Minimum Temperature | -40°C |
| Efficiency | 0.93 |
| Mounting Type | Panel |
| Hazardous Area Certification | ATEX, IECEx |
| Series | S8VK-S |
| Standards Met | ANSI/ISA 12.12.01, ATEX: EN 60079-0 -15, CSA C22.2 No. 213, CUL: CSA C22.2 No. 107.1, CUR: CSA C22.2 No. 60950-1, EN 60950-1, EN/IEC 61558-2-16:2009+A1:2013, EN: EN 50178, IEC-EX: IEC 60079-0 -15, Lloyd's Register DNV GL, PELV (EN/IEC 60204-1), UL Listed: UL 508, UL UR: UL 60950-1 |
| Maximum Temperature | +70°C |
| Special Features | Better Resistance to Environment, Easy Wiring, Perfect Fit for Small Control Panels |
| Output Voltage Adjustment Range | 21.6 → 28V |
| Ripple And Noise | 100mV Pk-Pk |
| MTBF | Minimum of 135000h |
