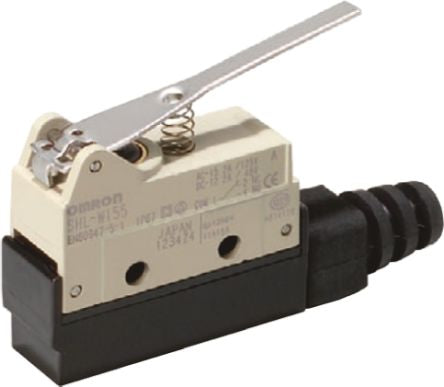

IP67 Snap Action Limit Switch Lever, NO/NC, 480V [SHLW155]; 752-9933
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 2 A ac, 200 mA dc |
| Maximum AC Voltage | 480V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 73.5mm |
| Width | 40.9mm |
| Dimensions | 73.5 x 40.9 x 17.5 mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -10°C |
| Mechanical Life Minimum | 10000000 Operations |
| Depth | 17.5mm |
| Mounting Orientation | Side |
