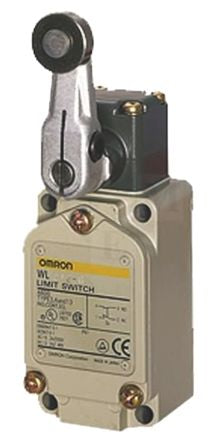

IP67 Double Break Limit Switch Roller Lever Aluminium Alloy, Stainless Steel, 2CO, 250V [WL-CA2-7GN]; 828-1018
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP67 |
| Maximum Current | 0.0833333333333333 |
| Housing Material | Aluminium Alloy, Stainless Steel |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 48V |
| Connection Type | G1/2 Conduit |
| Series | WL |
| Contact Type | Double Break |
| Terminal Type | Screw |
| Length | 137mm |
| Width | 40mm |
| Mechanical Life Minimum | 15000000 Operations |
| Maximum Operating Temperature | +80°C |
| Depth | 67.2mm |
| Mounting Orientation | Side |
| Minimum Operating Temperature | -10°C |
| Dimensions | 137 x 40 x 67.2 mm |
