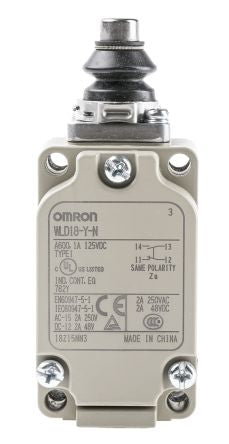

IP67 Snap Action Limit Switch Plunger, NO/NC, 500V [WLD18-Y-N]; 908-3281
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | M20 |
| Series | WL |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 42mm |
| Maximum Operating Temperature | +85°C |
| Mechanical Life Minimum | 15000000 Operations |
| Depth | 97.7mm |
| Dimensions | 40 x 42 x 97.7 mm |
| Operating Force | 26.67N |
| Mounting Orientation | Back, Front |
| Minimum Operating Temperature | -10°C |
| Standards Met | CCCS, CE Certified, CULus Listed, EN/IEC, UL |
