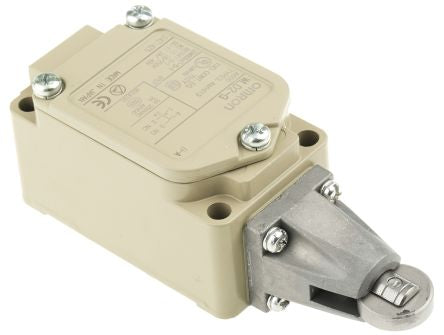

IP67 Snap Action Top Plunger Roller Lever Die Cast Aluminium, NO/NC, 600V [WLD2-G]; 342-382
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10 A @ 250 V ac |
| Housing Material | Die Cast Aluminium |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | Snap-On |
| Series | WL |
| Contact Type | Snap Action |
| Terminal Type | Conduit |
| Length | 96.7mm |
| Width | 40mm |
| Depth | 42mm |
| Minimum Operating Temperature | -10°C |
| Mechanical Life Minimum | 15000000 Operations |
| Maximum Operating Temperature | +80°C |
| Dimensions | 96.7 x 40 x 42 mm |
| Mounting Orientation | Side |
