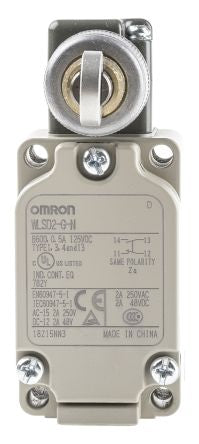

IP67 Snap Action Limit Switch Roller Plunger, NO/NC, 500V [WLSD2-G-N]; 908-3247
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 13.5 |
| Series | WL |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 67.3mm |
| Operating Force | 40.03N |
| Mounting Orientation | Back, Front |
| Dimensions | 40 x 67.3 x 96.2 mm |
| Standards Met | CCCS, CE Certified, CULus Listed, EN/IEC, UL |
| Minimum Operating Temperature | -10°C |
| Depth | 96.2mm |
| Mechanical Life Minimum | 15000000 Operations |
| Maximum Operating Temperature | +85°C |
