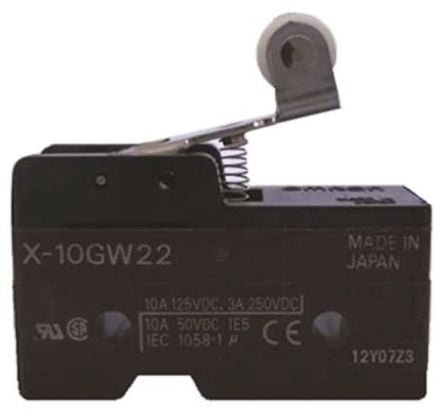

IP00 Snap Action Limit Switch Roller Lever Thermosetting Resin, NO/NC [X-10GW22-B]; 752-9810
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP00 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Thermosetting Resin |
| Maximum DC Voltage | 125V |
| Connection Type | Screw |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 49.2mm |
| Width | 24.2mm |
| Dimensions | 49.2 x 24.2 x 17.45 mm |
| Depth | 17.45mm |
| Minimum Operating Temperature | -25°C |
| Mechanical Life Minimum | 1000000 Operations |
| Maximum Operating Temperature | +80°C |
| Mounting Orientation | Side |
