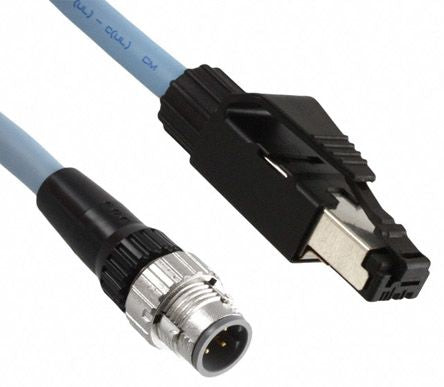

Omron XS5 Series, Straight M12 to Straight RJ45 Cable assembly, 4 Core , 2m Cable [XS5W-T421-DMC-K]; 123-5556
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight RJ45 |
| Length | 2m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Current Rating | 2.5 A |
| Sheath Colour | Black |
| Number of Strands | 7 |
| IP Rating | IP20, IP67 |
| Voltage Rating | 30 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Outer Sheath Material | PVC |
| Minimum Bend Radius | 25 mm |
| Outer Diameter | 6.5mm |
| Connector A Housing Gender | Plug |
| Connector B Housing Gender | Plug |
| Maximum Operating Temperature | +70°C |
| Size of Strands | 0.26 mm |
| Shielding | Shielded |
| Conductor Resistance | 40 (Contact) mΩ |
| American Wire Gauge | 22 |
| Sheath Material | Polyurethane PUR |
| Standards Met | IEC, UL CM |
| Minimum Operating Temperature | -25°C |
| Series | XS5 |
