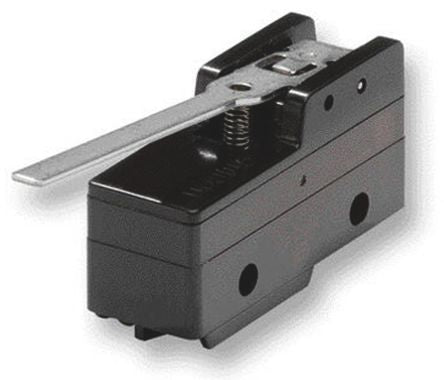

IP00 Snap Action Limit Switch Lever Thermosetting Resin, NO/NC, 500V [Z-15GW-B7-K]; 822-5626
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP00 |
| Maximum Current | 15 A |
| Housing Material | Thermosetting Resin |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | M4 |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 49.2mm |
| Width | 29.4mm |
| Mechanical Life Minimum | 20000000 Operations |
| Depth | 17.45mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 49.2 x 29.4 x 17.45 mm |
| Maximum Operating Temperature | +80°C |
