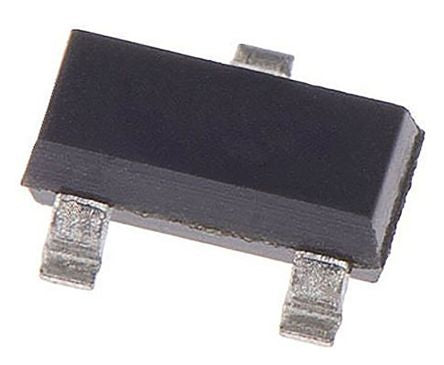

ON Semi 2SD1048-6-TB-E NPN Transistor, 700 mA, 15 V, 3-Pin CP [2SD1048-6-TB-E]; 792-5091
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 700 mA |
| Maximum Collector Emitter Voltage | 15 V |
| Package Type | CP |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Minimum DC Current Gain | 80 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 20 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 250 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Collector Emitter Saturation Voltage | 80 mV |
| Width | 1.5mm |
| Length | 2.9mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.9 x 1.5 x 1.1mm |
| Height | 1.1mm |
