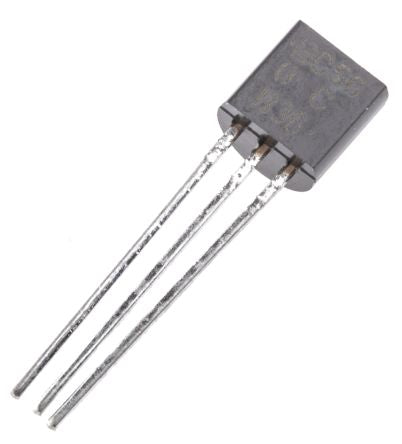

ON Semi BC560CG PNP Transistor, 100 mA, 45 V, 3-Pin TO-92 [BC560CG]; 545-2484
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 625 mW |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 50 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 250 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Height | 5.33mm |
| Maximum Operating Temperature | +150 °C |
| Length | 5.2mm |
| Dimensions | 5.33 x 5.2 x 4.19mm |
| Width | 4.19mm |
| Maximum Collector Emitter Saturation Voltage | 0.25 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | 1.1 V |
