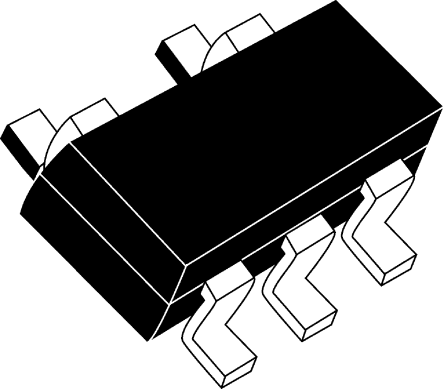

ON Semi CPH5506-TL-E Dual NPN + PNP Transistor, 1.5 A, 30 V, 5-Pin CPH [CPH5506-TL-E]; 163-2106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 1.5 A |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | CPH |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.2 W |
| Minimum DC Current Gain | 200 |
| Transistor Configuration | Common Emitter |
| Maximum Collector Base Voltage | -30 V, 40 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 450 (NPN) MHz, 500 (PNP) MHz |
| Pin Count | 5 |
| Number of Elements per Chip | 2 |
| Width | 1.6mm |
| Maximum Base Emitter Saturation Voltage | 1.2 V |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Maximum Collector Emitter Saturation Voltage | -375 (PNP) mV, 225 (NPN) mV |
