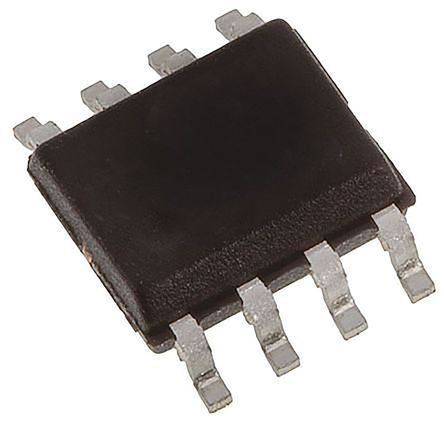

ON Semiconductor CS5124XD8G, PWM Current Mode Controller, 1.5 A, 440 kHz, 7.7 → 20 V, 8-Pin SOIC [CS5124XD8G]; 821-3043
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 1 |
| Control Method | Current |
| Topology | Flyback, Forward |
| Rise Time | 65ns |
| Fall Time | 55ns |
| Maximum Duty Cycle | 0.85 |
| Maximum Switching Frequency | 440 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Output Current | 1.5 A |
| Output Voltage | 2 V |
| On/Off Pin | Yes |
| Width | 4mm |
| Length | 5mm |
| Dimensions | 5 x 4 x 1.5mm |
| Typical Operating Supply Voltage | 7.7 → 20 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5mm |
| Maximum Operating Temperature | +135 °C |
