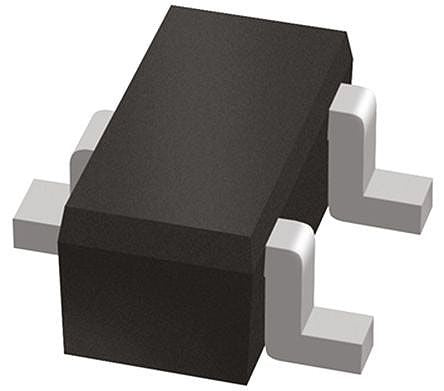

ON Semiconductor, DTA143ZET1G PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 3-Pin SOT-416 [DTA143ZET1G]; 801-0061
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 4.7 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SOT-416 (SC-75) |
| Pin Count | 3 |
| Minimum DC Current Gain | 80 |
| Maximum Power Dissipation | 300 mW |
| Transistor Configuration | Single |
| Maximum Collector Emitter Saturation Voltage | 0.25 V |
| Maximum Emitter Base Voltage | 6 V |
| Typical Resistor Ratio | 0.1 |
| Width | 0.9mm |
| Height | 0.8mm |
| Maximum Operating Temperature | +150 °C |
| Length | 1.65mm |
| Dimensions | 1.65 x 0.9 x 0.8mm |
| Minimum Operating Temperature | -55 °C |
