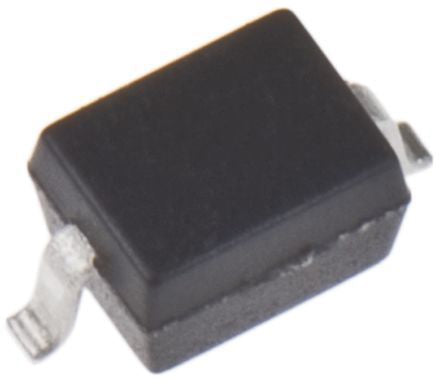

ON Semiconductor, ESD7351HT1G [ESD7351HT1G]; 186-9037
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 10V |
| Minimum Breakdown Voltage | 5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 150mW |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Working Voltage | 3.3V |
| Capacitance | 0.6pF |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.8mm |
| Automotive Standard | AEC-Q101 |
| Dimensions | 1.8 x 1.35 x 0.9mm |
| Width | 1.35mm |
| Height | 0.9mm |
| Test Current | 1mA |
