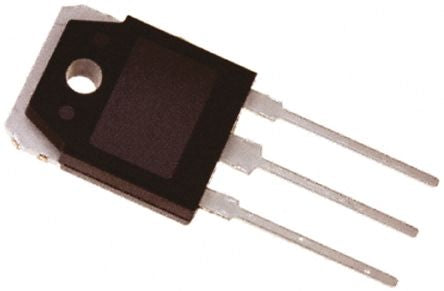

FCA36N60NF N-Channel MOSFET, 35 A, 600 V SupreMOS, 3-Pin TO-3PN ON Semiconductor [FCA36N60NF]; 145-4466
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 95 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 312 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Maximum Operating Temperature | +150 °C |
| Length | 16.2mm |
| Minimum Operating Temperature | -55 °C |
| Height | 20.1mm |
| Transistor Material | Si |
| Series | SupreMOS |
| Typical Gate Charge @ Vgs | 86 nC @ 10 V |
