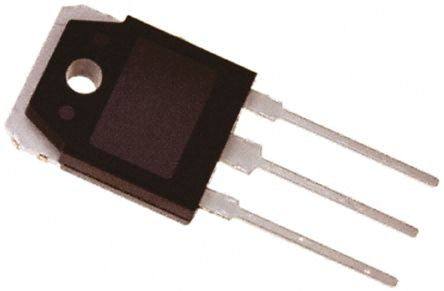

FCA47N60 N-Channel MOSFET, 47 A, 600 V SuperFET, 3-Pin TO-3PN ON Semiconductor [FCA47N60]; 145-4467
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 47 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 70 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 417 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 16.2mm |
| Height | 20.1mm |
| Series | SuperFET |
| Typical Gate Charge @ Vgs | 210 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
