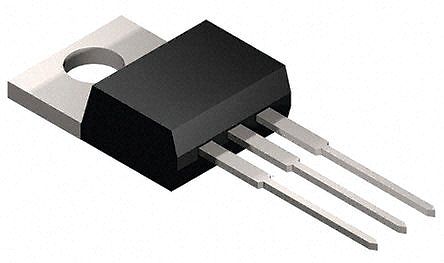

FCP190N65S3 N-Channel MOSFET, 17 A, 650 V, 3-Pin TO-220 ON Semiconductor [FCP190N65S3]; 172-3425
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 190 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 144 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Width | 4.7mm |
| Length | 10.67mm |
| Height | 16.3mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 33 nC @ 10 V |
