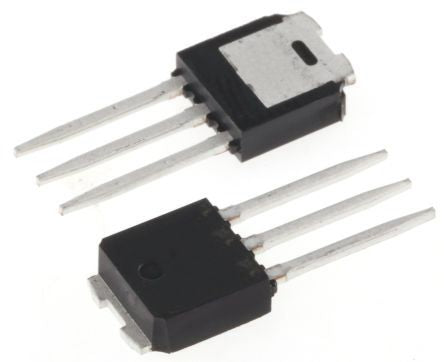

FCU360N65S3R0 N-Channel MOSFET, 10 A, 650 V, 3-Pin IPAK ON Semiconductor [FCU360N65S3R0]; 178-4246
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.416666666666667 |
| Maximum Drain Source Voltage | 650 V |
| Package Type | IPAK |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 360 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 83 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V |
| Height | 6.3mm |
| Length | 6.8mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Width | 2.5mm |
| Minimum Operating Temperature | -55 °C |
