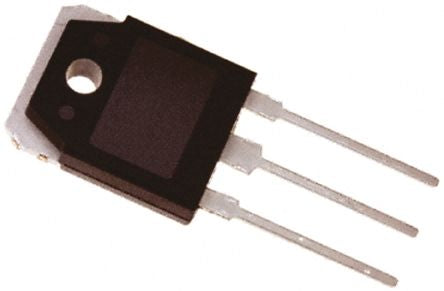

FDA33N25 N-Channel MOSFET, 33 A, 250 V UniFET, 3-Pin TO-3PN ON Semiconductor [FDA33N25]; 864-7944
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 33 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 94 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 245 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Typical Gate Charge @ Vgs | 36 nC @ 10 V |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Length | 16.2mm |
| Height | 20.1mm |
| Series | UniFET |
| Maximum Operating Temperature | +150 °C |
