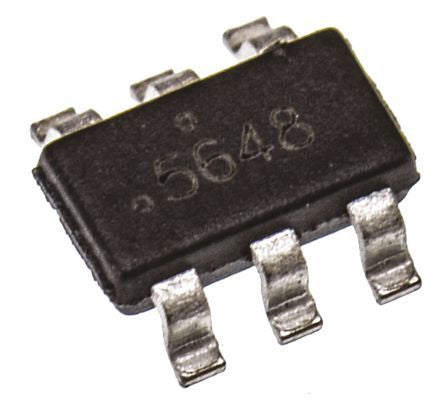

FDC6420C Dual N/P-Channel MOSFET, 2.2 A, 3 A, 20 V PowerTrench, 6-Pin SSOT ON Semiconductor [FDC6420C]; 166-2197
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 2.2 A, 3 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SSOT |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 106 mΩ, 190 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 960 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 2 |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Width | 1.7mm |
| Length | 3mm |
| Series | PowerTrench |
| Height | 1mm |
| Typical Gate Charge @ Vgs | 3.3 nC @ 4.5 V, 3.7 nC @ 4.5 V |
| Maximum Operating Temperature | +150 °C |
