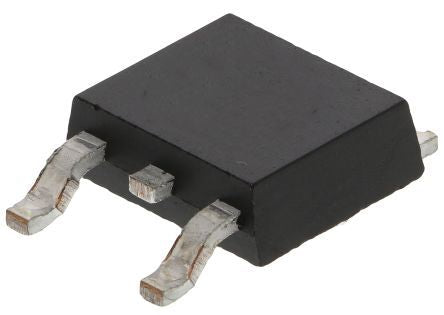

FDD9510L-F085 P-Channel MOSFET, 50 A, 40 V, 3-Pin DPAK ON Semiconductor [FDD9510L-F085]; 185-7983
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 22.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 75 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±16 V |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 28 nC @ 10 V |
| Height | 2.26mm |
| Maximum Operating Temperature | +175 °C |
| Length | 6.73mm |
| Forward Diode Voltage | 1.25V |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
