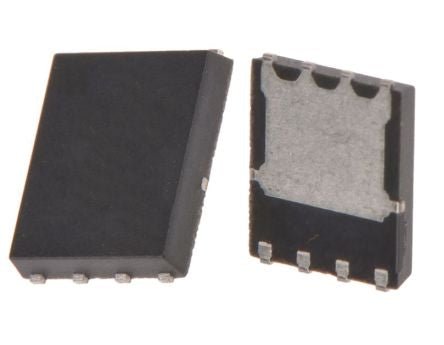

FDMC007N08LCDC N-Channel MOSFET, 22 A, 80 V, 8-Pin PQFN ON Semiconductor [FDMC007N08LCDC]; 178-4558
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 22 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 57 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 3.4mm |
| Minimum Operating Temperature | -55 °C |
| Length | 3.4mm |
| Forward Diode Voltage | 1.3V |
| Typical Gate Charge @ Vgs | 31 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.75mm |
