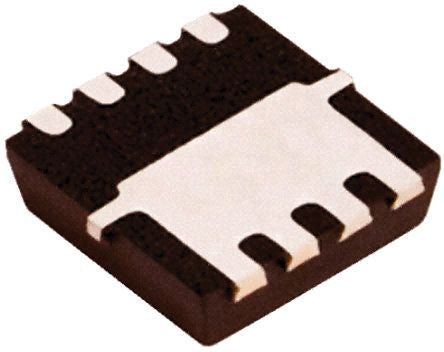

FDMC7678 N-Channel MOSFET, 63 A, 30 V PowerTrench, 8-Pin MLP ON Semiconductor [FDMC7678]; 759-9538
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 63 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | MLP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 7.2 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 31 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.3mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3.3mm |
| Transistor Material | Si |
| Height | 0.75mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 28 nC @ 10 V |
| Series | PowerTrench |
