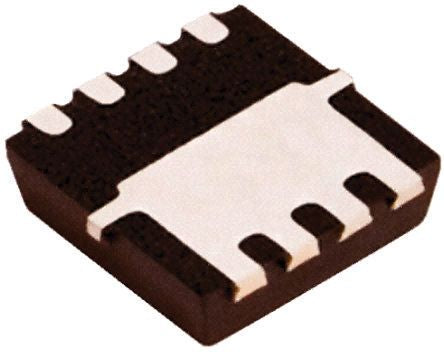

FDMC86116LZ N-Channel MOSFET, 7.5 A, 100 V PowerTrench, 8-Pin Power 33 ON Semiconductor [FDMC86116LZ]; 166-1665
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 7.5 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | Power 33 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 178 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 19 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Width | 3.3mm |
| Height | 0.75mm |
| Series | PowerTrench |
| Typical Gate Charge @ Vgs | 2 nC @ 4.5 V, 4 nC @ 10 V |
| Length | 3.3mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
