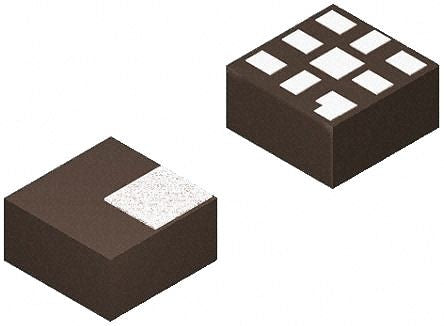

FDMC86261P P-Channel MOSFET, 2.7 A, 150 V PowerTrench, 8-Pin Power 33 ON Semiconductor [FDMC86261P]; 166-3511
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.7 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | Power 33 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 269 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 40 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Width | 3.3mm |
| Length | 3.3mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 17 nC @ 10 V |
| Height | 0.725mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
