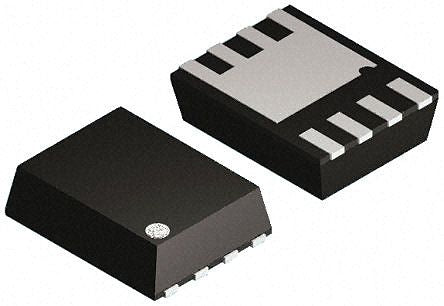

FDMS2572 N-Channel MOSFET, 27 A, 150 V UltraFET, 8-Pin Power 56 ON Semiconductor [FDMS2572]; 864-4986
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 27 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 103 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 78 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 6mm |
| Height | 0.75mm |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Series | UltraFET |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 31 nC @ 10 V |
| Transistor Material | Si |
