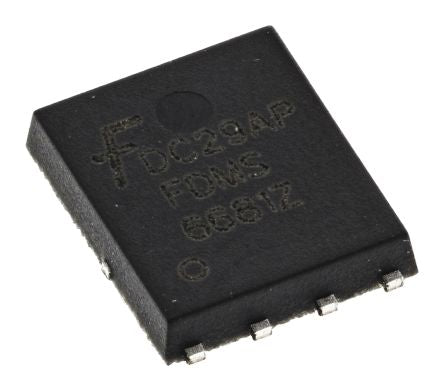

FDMS6681Z P-Channel MOSFET, 116 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS6681Z]; 759-9627
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 116 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 5 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 73 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.05mm |
| Series | PowerTrench |
| Width | 6mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 172 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
