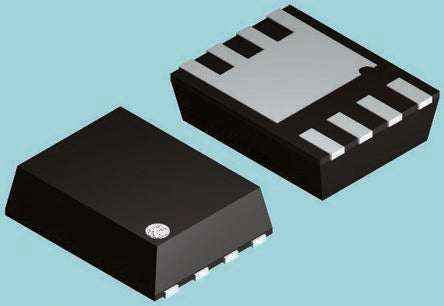

FDMS7670AS N-Channel MOSFET, 113 A, 30 V PowerTrench, SyncFET, 8-Pin Power 56 ON Semiconductor [FDMS7670AS]; 166-2675
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 113 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.8 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 65 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Height | 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Width | 6mm |
| Typical Gate Charge @ Vgs | 47 nC @ 10 V |
| Series | PowerTrench, SyncFET |
| Length | 5mm |
