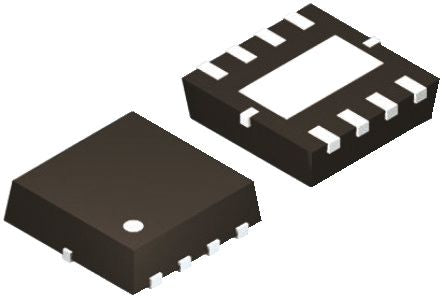

FDMS86200DC N-Channel MOSFET, 40 A, 150 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS86200DC]; 166-3509
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 40 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 35 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 30 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Minimum Operating Temperature | -55 °C |
| Series | PowerTrench |
| Width | 5.85mm |
| Length | 5.1mm |
