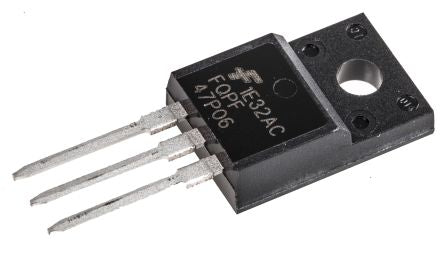

FQPF47P06 P-Channel MOSFET, 30 A, 60 V QFET, 3-Pin TO-220F ON Semiconductor [FQPF47P06]; 671-5269
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 30 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 26 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 62 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Width | 4.7mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 10.16mm |
| Maximum Operating Temperature | +175 °C |
| Height | 9.19mm |
| Typical Gate Charge @ Vgs | 84 nC @ 10 V |
| Series | QFET |
