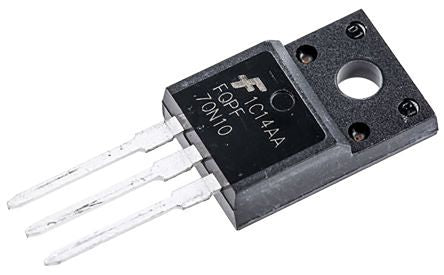

FQPF70N10 N-Channel MOSFET, 35 A, 100 V QFET, 3-Pin TO-220F ON Semiconductor [FQPF70N10]; 124-1764
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 23 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 62 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 4.7mm |
| Maximum Operating Temperature | +175 °C |
| Series | QFET |
| Height | 9.19mm |
| Typical Gate Charge @ Vgs | 85 nC @ 10 V |
| Length | 10.16mm |
