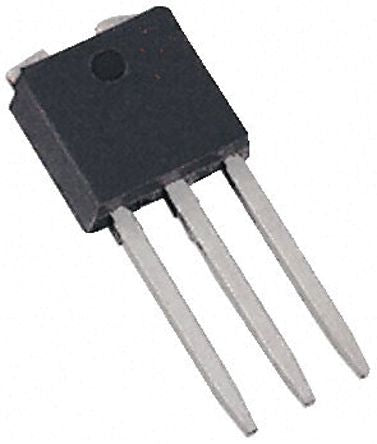

FQU5P20TU P-Channel MOSFET, 3.7 A, 200 V QFET, 3-Pin IPAK ON Semiconductor [FQU5P20TU]; 145-4405
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 3.7 A |
| Maximum Drain Source Voltage | 200 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.4 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 45 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 2.5mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Series | QFET |
| Height | 7.57mm |
| Typical Gate Charge @ Vgs | 10 nC @ 10 V |
| Length | 6.8mm |
