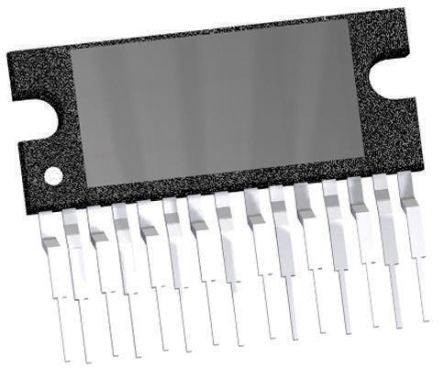

ON Semiconductor LV5680P-E, Quad Linear Voltage Regulator, 1300mA, Adjustable, 5 V, 9 V, 12 V, ±1% 16-Pin, HZIP15J [LV5680P-E]; 161-2587
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V, 9 V, 12 V |
| Maximum Output Current | 1300mA |
| Package Type | HZIP15J |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Minimum Input Voltage | 7.5 V |
| Maximum Input Voltage | 16 V |
| Pin Count | 16 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 85 °C |
| Number of Outputs | 4 |
| Polarity | Positive |
| Line Regulation | 90 mV |
| Dropout Voltage Measurement Current | 100 mA, 200 mA, 500 mA |
| Load Regulation | 150 mV |
| Quiescent Current | 800µA |
| Accuracy | ±1% |
| Reference Voltage | 8.67 V, 9 V, 9.33 V |
| Length | 22mm |
| Height | 11mm |
| Typical Dropout Voltage @ Current | 1.05 V @ 100 mA, 1.5 V @ 200 mA, 3.75 V @ 500 mA |
| Dimensions | 22 x 3 x 11mm |
| Series | LV5680P |
| Width | 3mm |
