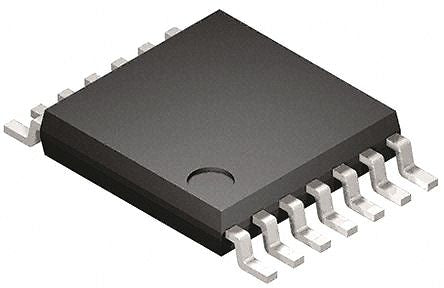

ON Semiconductor MC74HC00ADTR2G, Quad 2-Input NAND Logic Gate, 2 → 6 V, 14-Pin TSSOP [MC74HC00ADTR2G]; 806-2365
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 14 |
| Logic Family | LS |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | 5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 110 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Minimum Operating Temperature | -55 °C |
| Length | 5.1mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Height | 1.05mm |
| Output Type | LSTTL |
| Width | 4.5mm |
| Dimensions | 5.1 x 4.5 x 1.05mm |
