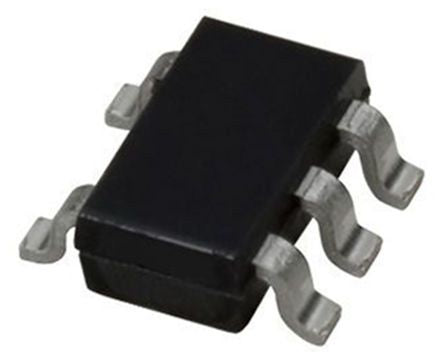

ON Semiconductor MC74VHC1G01DFT1G, 2-Input NAND Logic Gate, 5-Pin SC-88A [MC74VHC1G01DFT1G]; 145-3686
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SC-88A |
| Pin Count | 5 |
| Logic Family | VHC |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 15.5 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 8mA |
| Dimensions | 2.2 x 1.35 x 1mm |
| Width | 1.35mm |
| Length | 2.2mm |
| Minimum Operating Temperature | -55 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Height | 1mm |
| Output Type | Open Drain |
