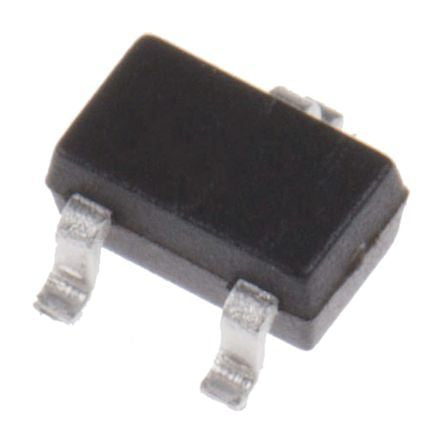

ON Semi MMBT2222AWT1G NPN Transistor, 600 (Continuous) mA, 40 V, 3-Pin SC-70 [MMBT2222AWT1G]; 184-1000
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 600 (Continuous) mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SC-70 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 150 mW |
| Minimum DC Current Gain | 35 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | 2 V dc |
| Height | 0.9mm |
| Transistor Material | Si |
| Maximum Collector Emitter Saturation Voltage | 1 V dc |
| Dimensions | 2.2 x 1.35 x 0.9mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
