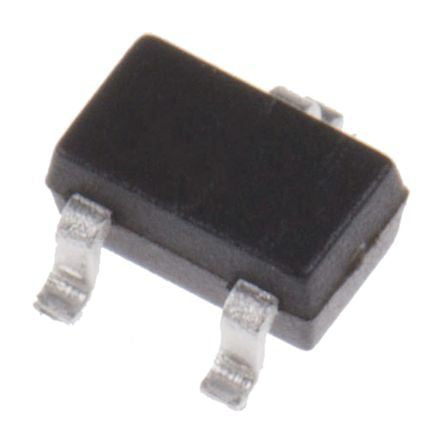

ON Semiconductor, MUN5215T1G [MUN5215T1G]; 186-7187
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V dc |
| Typical Input Resistor | 10 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 3 |
| Minimum DC Current Gain | 160 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 310 mW |
| Maximum Collector Emitter Saturation Voltage | 0.25 V dc |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
| Automotive Standard | AEC-Q101 |
| Length | 2.2mm |
| Dimensions | 2.2 x 1.35 x 0.9mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
